MEGA-450 is the largest component in this pressurized water system line, engineered for high-rise buildings, fire systems, and demanding long-distance pressure support. With a massive 450-liter (120-gallon) capacity, it reliably maintains water pressure at a set, consistent level.
Built for high-stress environments, the tank supports a robust maximum operating pressure of 16 bar. It is factory-pre-charged with 100% nitrogen to ensure highly stable performance and prevent pressure fluctuations caused by temperature changes.
Measuring 65.0 cm in diameter and 140.6 cm in height, the tank features a heavy-duty base for maximum stability. This ultimate-capacity solution is ideal for industrial booster setups requiring exceptional high-pressure performance and flow rates up to 75 liters per minute.
Product Overview
The MEGA-450 is a 450-liter (120-gallon) high-performance diaphragm tank, engineered as the definitive solution for large-scale water system stabilization. Utilizing a specialized FDA-grade polypropylene liner integrated with a premium butyl diaphragm, it ensures a dedicated "Safe Water Zone" by preventing any contact between the liquid and the tank's metallic shell.
Key technical advantages include a 100% Nitrogen pre-charge and a 16-bar (232 PSI) pressure rating, which significantly outperforms standard industry tanks. This configuration ensures more stable pressure cycles and minimizes pump "short-cycling," directly preventing motor burnout and extending equipment lifespan.
Constructed with a heavy-duty cold-rolled carbon steel shell and protected by a triple-grade epoxy powder finish, the MEGA-450 offers superior oxidation resistance. Equipped with a 1-1/4” Stainless Steel lead-free connector, this CE and ISO 9001 certified unit provides an energy-saving, maintenance-free solution for critical high-pressure applications.
Certification
Specifications and Technical Data
| Parameter | Value |
| Model Number | MEGA-450 |
| Total Tank Volume | 450 liters / 120 gallons |

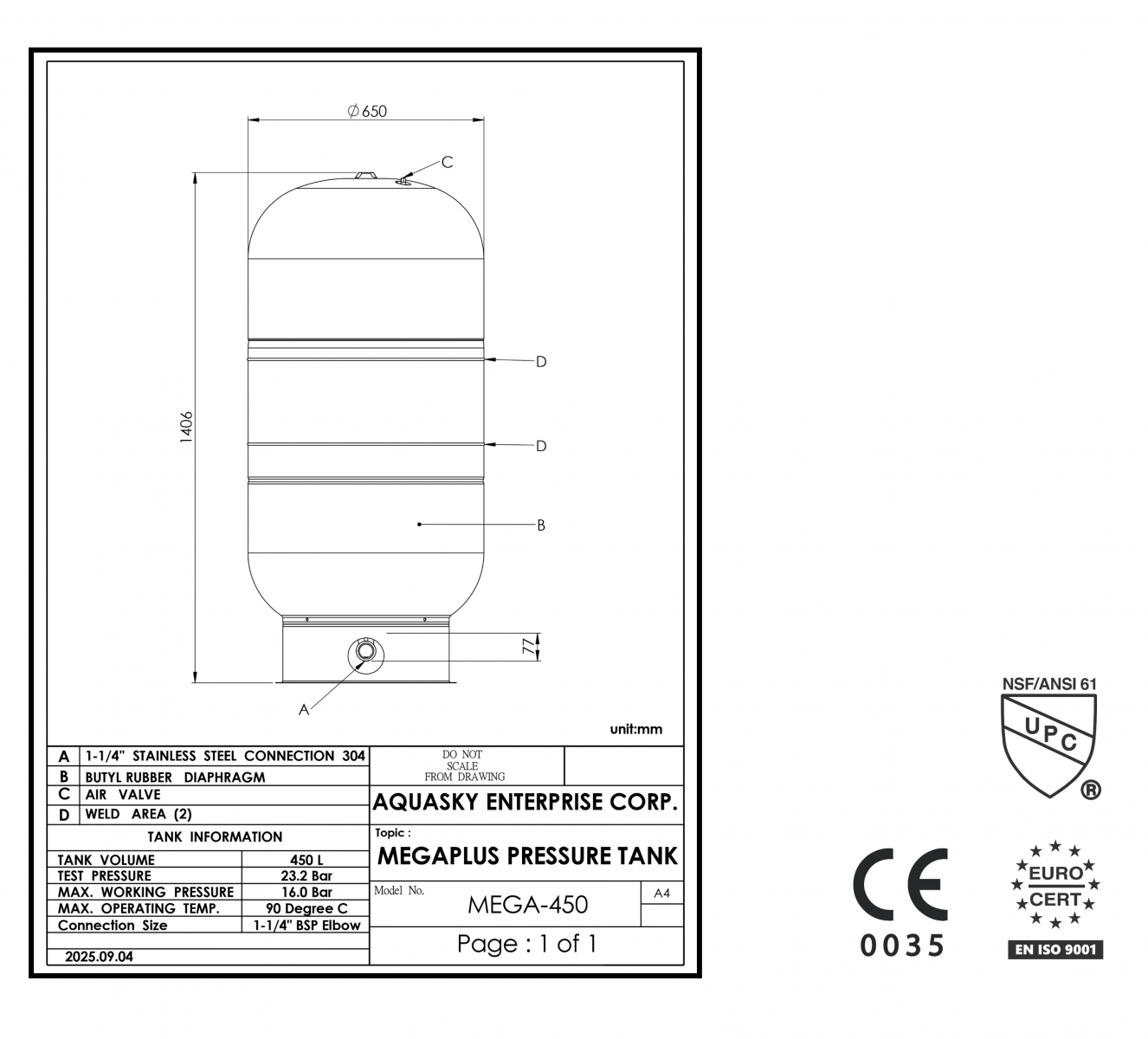

| Diameter | 65.0 cm / 25.6 inch |
| Height | 140.6 cm / 55.4 inch |
| Net Weight (NW) | 65.7 kg / 144.8 lbs. |
| Gross Weight (GW) | 70.7 kg / 155.9 lbs. |
| Shipping Volume | 21.48 CUF |
| Operating Temperature | 90°C / 194°F |
| Factory Pre-charge | 4 bar | 58 psi |
| Max. Operating Pressure | 16 bar | 232 psi |
| Connection | 1-1/4” 304 Stainless Steel |
| Liner Material | Polypropylene |
| Diaphragm Material | Heavy-Duty Butyl Rubber (DIN 4807 compliant) |
| Shell | Cold Rolled Carbon Steel |
| External Coating | Triple Grade Blue Paint |
| Pre-charge Gas | 100% Nitrogen |
Key Features & Design Advantages
How the MEGA-PLUS Pressure Tank Works
The MEGA-450 stores supplemental water between the liner and the heavy-duty butyl rubber diaphragm. When a faucet is opened or an appliance demands water, the compressed nitrogen air chamber pushes the stored water into the system. This allows the system to meet low-volume water demands without immediately triggering the pump motor. By creating this efficient supply cycle, the tank minimizes pump cycling, stabilizes water pressure, and conserves energy.
Key benefits
Typical Applications
Frequently Asked Question (FAQ)
The MEGA-450 is the flagship model of the series, offering a massive 120-gallon (450-liter) capacity and standing 55.4 inches tall. It effortlessly handles extreme commercial and industrial demands with an unparalleled 75 liters per minute flow rate.
Yes. By storing supplemental pressurized water, the MEGA-450 reduces the number of times your pump motor needs to turn on for small water demands. This ensures your water system works far more efficiently and saves energy.
The MEGA-450 ships in a box measuring 65.0 cm in length, 65.0 cm in width, and 144.0 cm in height, with a gross weight of 70.7 kg.
Customized Colors & Packaging
We offer a wide range of customization options to match your exact needs - from custom colors to branded packaging and logo design.
Watch our video to explore the possibilities and see how we help your products stand out in the market.
Downloads & Certification Links
Detailed product information and data
Collection of all relevant product certifications.
