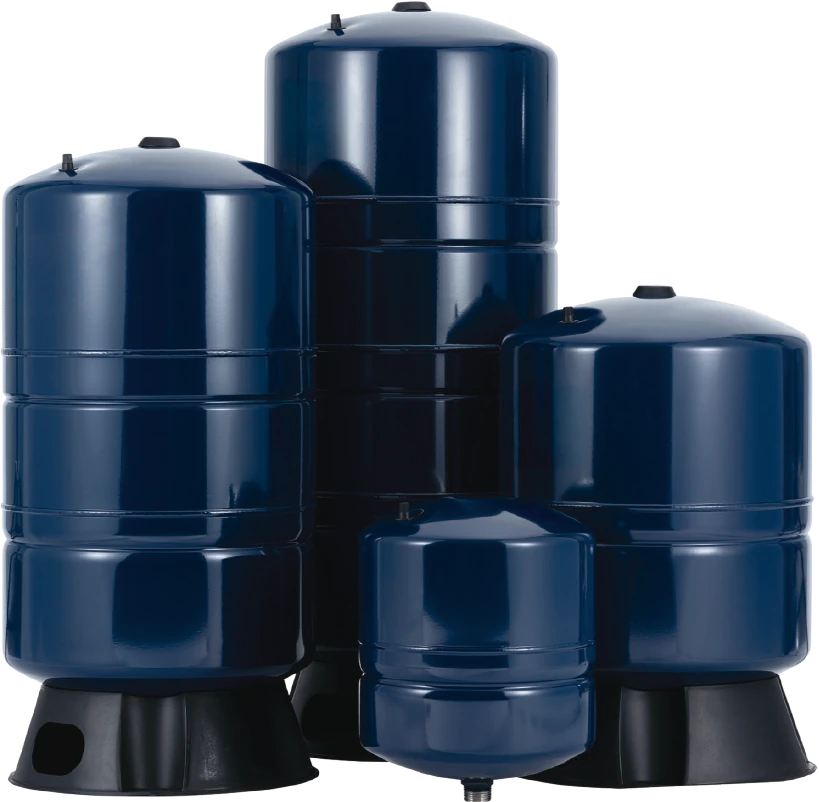

GIGA-PLUS (25 bar) Pressure Tank is engineered for demanding water supply conditions, reliably withstanding working pressure up to 25 bar. The robust steel construction, combined with a high-density butyl diaphragm and anti-corrosive coating, ensures long-lasting durability and safety. The internal pressure balance system maintains consistently stable water pressure and reduces pump start frequency, promoting energy savings and extending equipment lifespan.

Whether for high-rise fire protection, hospitals, hotels, or industrial water supply, GIGA-PLUS delivers continuous and stable high-pressure water, providing the best assurance for systems requiring exceptional pressure performance and efficiency.

SPECIFICATIONS

GIGA-PLUS PRESSURE TANK 25BAR

Model Number	Total Tank Volume		Diameter		Height		Box Length		Box Width		Box Height		N.W.		G.W.		Shipping Volume	Connection
Model Number	Liter	Gal	Cm	Inch	Cm	Inch	Cm	Inch	Cm	Inch	Cm	Inch	Kg	Lbs	Kg	Lbs	CUF	Connection
GIGA-18	18	4.5	28.0	11.0	36.5	14.4	28.0	11.0	28.0	11.0	39.0	15.4	6.15	13.56	6.55	14.44	1.08	1" NPT/BSP
GIGA-60	60	14	39.0	15.4	60.7	23.9	40.0	15.7	40.0	15.7	62.0	24.4	16.00	35.27	17.30	38.13	3.50	1" NPT/BSP
GIGA-80	80	20	39.0	15.4	79.2	31.2	41.0	16.1	41.0	16.1	80.0	31.5	22.80	50.26	24.40	53.79	4.75	1" NPT/BSP
GIGA-100	100	28	39.0	15.4	95.6	37.6	40.0	15.7	40.0	15.7	98.0	38.6	29.80	65.69	31.60	69.67	5.54	1" NPT/BSP

PRODUCT FEATURE

Shell: Cold Rolled Carbon Steel	Liner Material: FDA Grade Polypropylene
System Connection: 304 Stainless Steel Connector	Factory Pre-charge: 58 PSI / 4 Bar
Coating: Triple Grade Paint	Max. Working Temperature: 90°C / 194°F
Diaphragm: Heavy-Duty Butyl Rubber	Max. Working Pressure: 362PSI / 25bar
