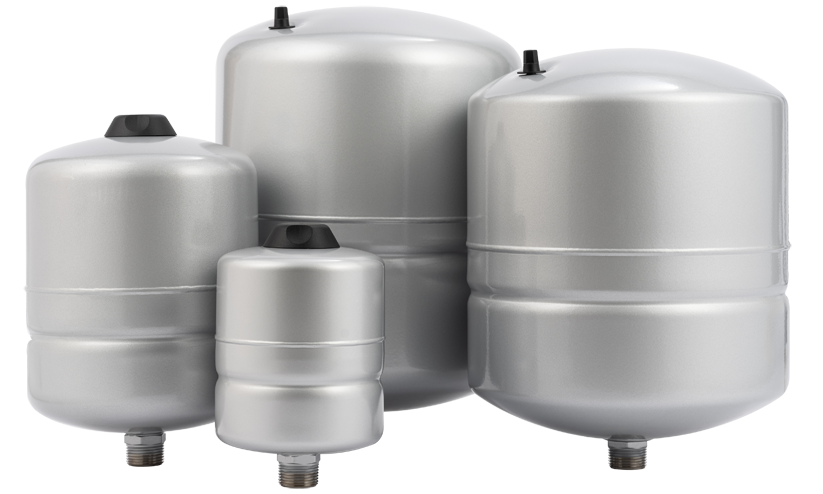

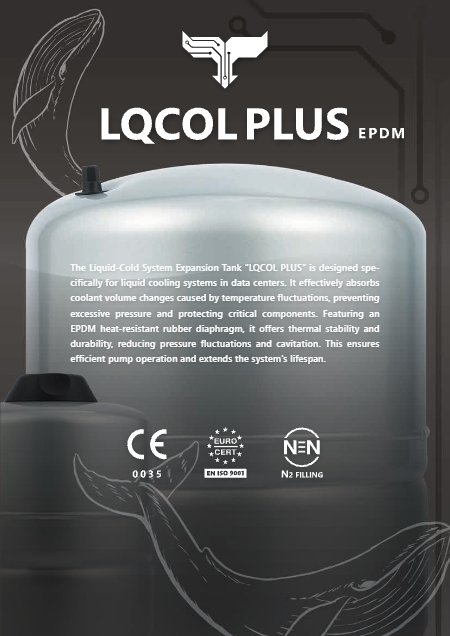

The Liquid-Cold System Expansion Tank “LQCOL PLUS’’ is designed specifically for liquid cooling systems in data centers. It effectively absorbs coolant volume changes caused by temperature fluctuations, preventing excessive pressure and protecting critical components. Featuring an EPDM heat-resistant rubber diaphragm, it offers thermal stability and durability, reducing pressure fluctuations and cavitation. This ensures efficient pump operation and extends the system's lifespan.

Product Specifications

LIQUID-COLD SYSTEM EXPANSION TANK - LQCOL PLUS

COLD ROLLED CARBON STEEL

Model Number	Total Tank Volume		Diameter		Height		Box Length		Box Width		Box Height		N.W.		G.W.		Shipping Volume	Connection
Model Number	Liter	Gal	Cm	Inch	Cm	Inch	Cm	Inch	Cm	Inch	Cm	Inch	Kg	Lbs	Kg	Lbs	CUF	Connection
LQC- 3	3	0.8	14.0	5.5	20.8	8.2	31.0	12.2	31.0	12.2	24.0	9.4	4.1	9.0	4.7	10.4	0.81	3/4" G/NPT/BSP
LQC - 8	8	2.0	20.3	8.0	29.9	11.8	21.0	8.3	21.0	8.3	32.0	12.6	1.9	4.2	2.3	5.1	0.50	3/4" G/NPT/BSP
LQC -12	12	3.2	22.9	9.0	37.1	14.6	23.5	9.3	23.5	9.3	39.0	15.4	2.7	6.0	3.0	6.6	0.76	3/4" G/NPT/BSP
LQC -18	18	4.5	28.0	11.0	37.9	14.9	28.0	11.0	28.0	11.0	39.0	15.4	3.4	7.5	3.8	8.4	1.08	3/4" G/NPT/BSP
LQC -24	24	6.0	29.0	11.4	40.5	15.9	31.0	12.2	31.0	12.2	42.0	16.5	3.6	7.9	4.5	9.9	1.42	3/4" G/NPT/BSP

STAINLESS STEEL

Model Number	Total Tank Volume		Diameter		Height		Box Length		Box Width		Box Height		N.W.		G.W.		Shipping Volume	Connection
Model Number	Liter	Gal	Cm	Inch	Cm	Inch	Cm	Inch	Cm	Inch	Cm	Inch	Kg	Lbs	Kg	Lbs	CUF	Connection
LQC-8SS	8	2.0	20.3	8.0	28.1	11.1	21.0	8.3	21.0	8.3	32.0	12.6	2.1	4.6	2.4	5.3	0.50	3/4" G/NPT/BSP
LQC-18SS	18	4.5	28.0	11.0	35.9	14.1	28.0	11.0	28.0	11.0	39.0	15.4	3.1	6.8	3.8	8.4	1.08	3/4" G/NPT/BSP
LQC-24SS	24	6.0	29.0	11.4	39.9	15.7	31.0	12.2	31.0	12.2	42.0	16.5	3.6	7.9	4.5	9.9	1.42	3/4" G/NPT/BSP
LQC-60SS	60	14	39.0	15.4	59.5	23.4	40.0	15.7	40.0	15.7	62.0	24.4	9.4	20.7	10.7	23.6	3.50	3/4" G/NPT/BSP

Product Features

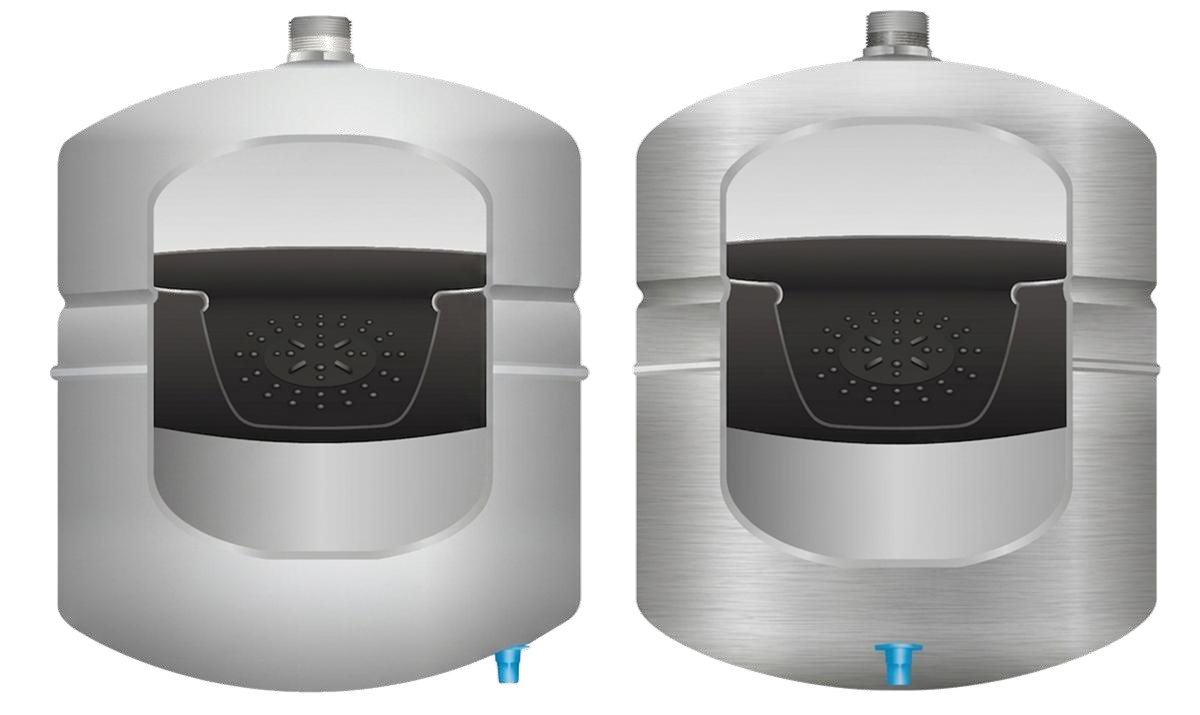

Shell	Cold Rolled Carbon Steel / Stainless Steel
System Connection	304 Stainless Steel Connector
Coating	Triple Grade Paint
Diaphragm	EPDM Rubber
Factory Pre-charge	30 PSI / 2 Bar
Max. Working Temperature	Cold Rolled Carbon Steel: 90°C / 194°F
Max. Working Temperature	Stainless Steel: 120°C / 248°F
Max. Working Pressure	150PSI / 10bar
