MEGA-200 is a pressurized water system component designed for high-rise buildings, fire systems, and demanding long-distance pressure support. With a 200-liter (53-gallon) capacity, it reliably maintains water pressure at a set, consistent level.
Built for high-stress environments, this tank supports a robust maximum operating pressure of 16 bar. It is factory-pre-charged with 100% nitrogen to ensure stable performance and prevent pressure fluctuations caused by temperature changes.

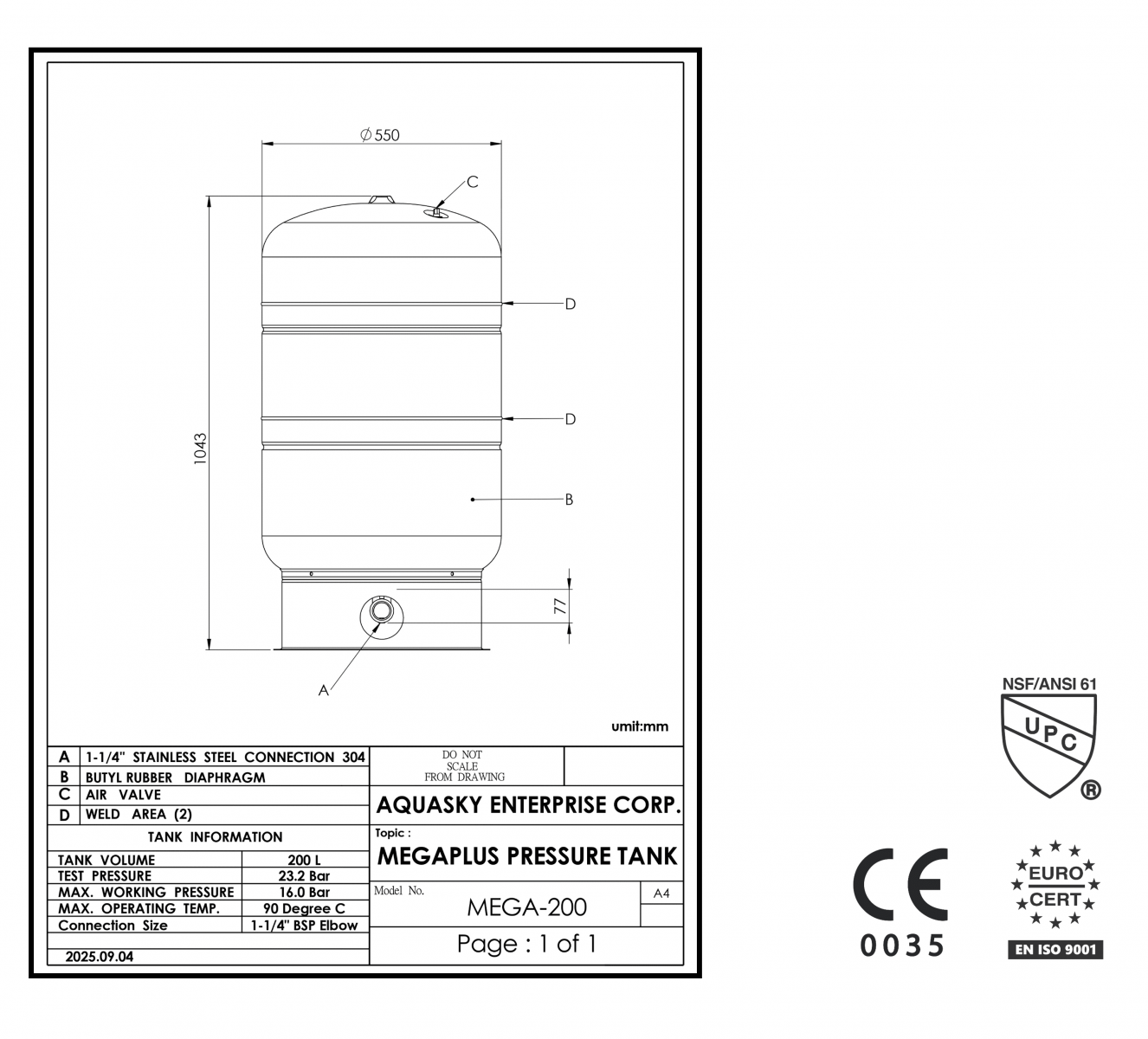

Measuring 55.0 cm in diameter and 104.3 cm in height, the tank includes a heavy-duty base for added stability. It is an ideal high-capacity solution for residential, commercial, and industrial booster setups requiring exceptional high-pressure performance and massive flow rates.
Product Overview
The MEGA-200 is a 200-liter (53-gallon) high-performance diaphragm tank, engineered as the definitive solution for mid-to-large scale water system stabilization. Utilizing a specialized FDA-grade polypropylene liner integrated with a premium butyl diaphragm, it ensures a dedicated "Safe Water Zone" by preventing any contact between the liquid and the tank's metallic shell.
Key technical advantages include a 100% Nitrogen pre-charge and a 16-bar (232 PSI) pressure rating, which significantly outperforms standard industry tanks. This configuration ensures more stable pressure cycles and minimizes pump "short-cycling," directly preventing motor burnout and extending equipment lifespan.
Constructed with a heavy-duty cold-rolled carbon steel shell and protected by a triple-grade epoxy powder finish, the MEGA-200 offers superior oxidation resistance. Equipped with a 1-1/4” Stainless Steel lead-free connector, this CE and ISO 9001 certified unit provides an energy-saving, maintenance-free solution for critical high-pressure applications.
Certification
Specifications and Technical Data
| Parameter | Value |
| Model Number | MEGA-200 |
| Total Tank Volume | 200 liters / 53 gallons |
| Diameter | 55.0 cm / 21.7 inch |
| Height | 104.3 cm / 41.1 inch |
| Net Weight (NW) | 34.7 kg / 76.5 lbs. |
| Gross Weight (GW) | 38.0 kg / 83.8 lbs. |
| Shipping Volume | 11.53 CUF |
| Operating Temperature | 90°C / 194°F |
| Factory Pre-charge | 4 bar | 58 psi |
| Max. Operating Pressure | 16 bar | 232 psi |
| Connection | 1-1/4” 304 Stainless Steel |
| Liner Material | Polypropylene |
| Diaphragm Material | Heavy-Duty Butyl Rubber (DIN 4807 compliant) |
| Shell | Cold Rolled Carbon Steel |
| External Coating | Triple Grade Blue Paint |
| Pre-charge Gas | 100% Nitrogen |
Key Features & Design Advantages
How the MEGA-PLUS Pressure Tank Works
The MEGA-200 stores supplemental water between the liner and the heavy-duty butyl rubber diaphragm. When a faucet is opened or an appliance demands water, the compressed nitrogen air chamber pushes the stored water into the system. This allows the system to meet low-volume water demands without immediately triggering the pump motor. By creating this efficient supply cycle, the tank minimizes pump cycling, stabilizes water pressure, and conserves energy.
Key benefits
Typical Applications
Frequently Asked Question (FAQ)
The MEGA-200 holds 200 liters (53 gallons) and is designed to handle a substantial 33.5L per minute flow rate.
Even at 200–240 liters, these tanks are frequently used in large-scale potable water systems (e.g., hotels, hospitals). Compliance with the DIN 4807 standard ensures the massive butyl membrane will not leach any plastic or rubber taste into the public drinking water supply.
The MEGA-200 is shipped in a box measuring 55.0 cm in length, 55.0 cm in width, and 108.0 cm in height.
